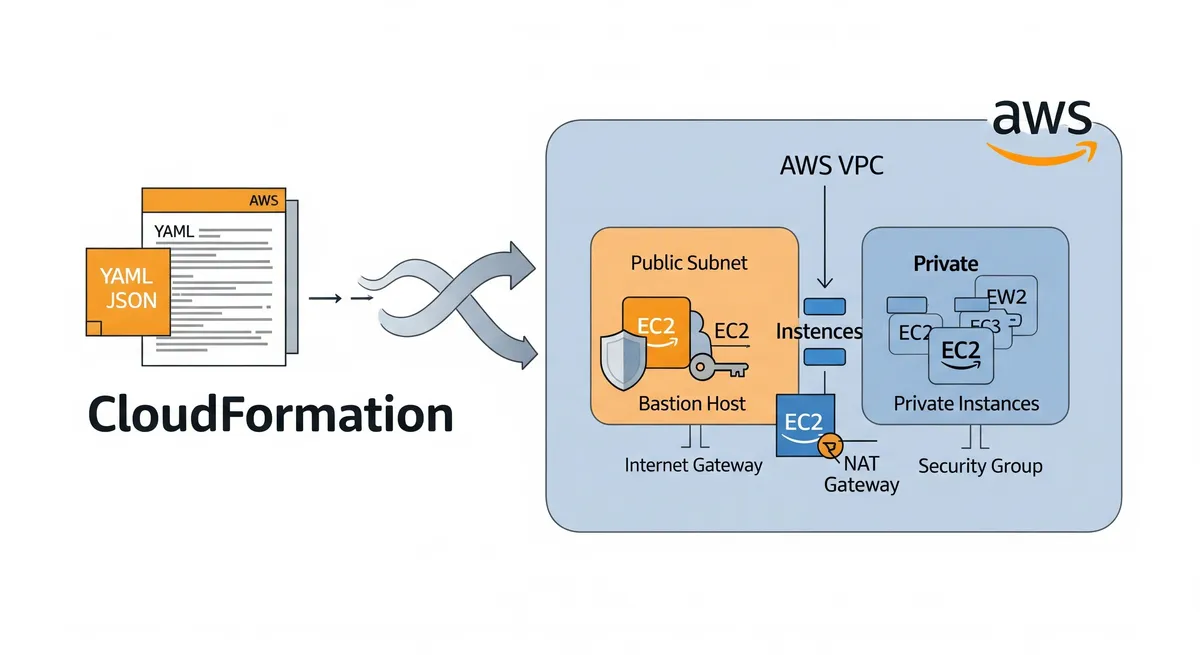

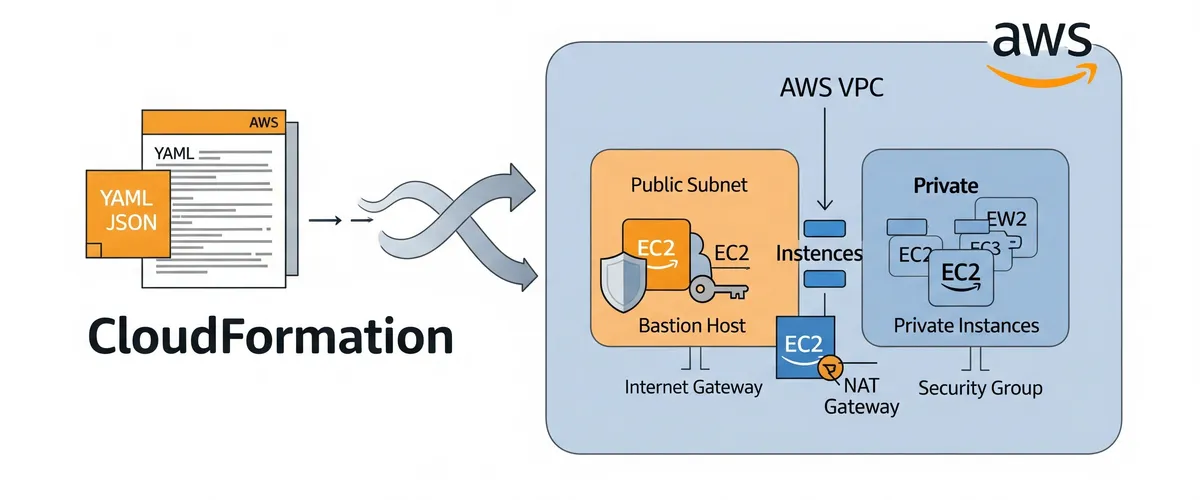

How To Setup Bastion Host on AWS using CloudFormation Template

Mohammad Abu Mattar
Cloud Computing , DevOps
10 Jan, 2023
09 Mins read

Introduction

In previous post How To Setup Bastion Host on AWS using CloudFormation Template, we will learn how to setup a Bastion host on AWS using a CloudFormation template. We will walk through the process of creating a CloudFormation template, deploying it, and connecting to the instances created by the template. This is a simple and efficient way of setting up a Bastion host on AWS.

Prerequisites

Before starting, make sure that you have the following:

AWS CLI installed and configured on your local machine. You can follow the instructions on Installing the AWS CLI to install and configure it.
An IAM user with the following permissions:
- AmazonVPCFullAccess
- AmazonEC2FullAccess
- AWSCloudFormationFullAccess
Basic knowledge of networking and SSH
Familiarity with YAML and AWS CloudFormation
AWS CLI version 2 or later.
The AWS CLI configured with the desired credentials
Knowledge of AWS basic building blocks such as VPCs, Subnets, Security Groups, Elastic IPs and EC2 instances.

To create an IAM user, follow the instructions on Creating an IAM User

Setup Bastion Host on AWS using CloudFormation Template

Create a CloudFormation Template

Create a new file called bastion-host-with-vpc.yml and include the CloudFormation template code. This should include the necessary resources such as VPC, subnets, security groups, Elastic IPs, Internet Gateway, NAT Gateway, and EC2 instances. Make sure to specify the correct parameters such as subnet IDs, security group IDs, and key pair names.

bastion-host-with-vpc.yml

1
AWSTemplateFormatVersion: '2010-09-09'
2
Description: >-
3
  This template creates a VPC with 2 subnets, 1 public and 1 private. It also
4
  Internet Gateway, NAT Gateway, Route Tables, Security Groups and EC2 Instances
5
  for Bastion Host and Private Instance.
6

7
Parameters:
8
  EnvironmentName:
9
    Description: >-
10
      An environment name that will be prefixed to resource names
11
    Type: String
12
    AllowedValues:
13
      - dev
14
      - test
15
      - prod
16
    Default: dev
17
  VPCName:
18
    Description: >-
19
      The name of the VPC. This name is used as a tag value for the VPC and
20
      subnets.
21
    Type: String
22
    Default: bastion-host-vpc
23
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
24
    ConstraintDescription: >-
25
      VPC name can include numbers, lowercase letters, uppercase letters, and
26
      hyphens (-). It cannot start or end with a hyphen (-).
27
  VPCCIDR:
28
    Description: >-
29
      The CIDR block for the VPC. This should be a valid private (RFC 1918)
30
      CIDR range.
31
    Type: String
32
    Default: 10.0.0.0/16
33
    AllowedPattern: ^(([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])\.){3}([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])(\/(1[6-9]|2[0-9]|3[0-2]))$
34
    ConstraintDescription: >-
35
      CIDR block parameter must be in the form x.x.x.x/16-32, where x is a
36
      number from 0-255, and /16-32 is a valid CIDR range.
37
  PublicSubnetName:
38
    Description: >-
39
      The name of the public subnet. This name is used as a tag value for the
40
      subnet.
41
    Type: String
42
    Default: bastion-host-public-subnet
43
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
44
    ConstraintDescription: >-
45
      Subnet name can include numbers, lowercase letters, uppercase letters, and
46
      hyphens (-). It cannot start or end with a hyphen (-).
47
  PublicSubnetCIDR:
48
    Description: >-
49
      The CIDR block for the public subnet. This should be a valid private (RFC
50
      1918) CIDR range that is /24 or larger.
51
    Type: String
52
    Default: 10.0.0.0/24
53
    AllowedPattern: ^(([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])\.){3}([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])(\/(2[4-9]|3[0-2]))$
54
    ConstraintDescription: >-
55
      CIDR block parameter must be in the form x.x.x.x/24-32, where x is a
56
      number from 0-255, and /24-32 is a valid CIDR range.
57
  PrivateSubnetName:
58
    Description: >-
59
      The name of the private subnet. This name is used as a tag value for the
60
      subnet.
61
    Type: String
62
    Default: bastion-host-private-subnet
63
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
64
    ConstraintDescription: >-
65
      Subnet name can include numbers, lowercase letters, uppercase letters, and
66
      hyphens (-). It cannot start or end with a hyphen (-).
67
  PrivateSubnetCIDR:
68
    Description: >-
69
      The CIDR block for the private subnet. This should be a valid private (RFC
70
      1918) CIDR range that is /24 or larger.
71
    Type: String
72
    Default: 10.0.16.0/24
73
    AllowedPattern: ^(([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])\.){3}([0-9]|[1-9][0-9]|1[0-9]{2}|2[0-4][0-9]|25[0-5])(\/(2[4-9]|3[0-2]))$
74
    ConstraintDescription: >-
75
      CIDR block parameter must be in the form x.x.x.x/24-32, where x is a
76
      number from 0-255, and /24-32 is a valid CIDR range.
77
  InternetGatewayName:
78
    Description: >-
79
      The name of the Internet Gateway. This name is used as a tag value for the
80
      Internet Gateway.
81
    Type: String
82
    Default: bastion-host-igw
83
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
84
    ConstraintDescription: >-
85
      Internet Gateway name can include numbers, lowercase letters, uppercase
86
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
87
  NATGatewayName:
88
    Description: >-
89
      The name of the NAT Gateway. This name is used as a tag value for the NAT
90
      Gateway.
91
    Type: String
92
    Default: bastion-host-ngw
93
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
94
    ConstraintDescription: >-
95
      NAT Gateway name can include numbers, lowercase letters, uppercase
96
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
97
  PublicRouteTableName:
98
    Description: >-
99
      The name of the public route table. This name is used as a tag value for
100
      the route table.
101
    Type: String
102
    Default: bastion-host-public-route-table
103
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
104
    ConstraintDescription: >-
105
      Route table name can include numbers, lowercase letters, uppercase
106
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
107
  PrivateRouteTableName:
108
    Description: >-
109
      The name of the private route table. This name is used as a tag value for
110
      the route table.
111
    Type: String
112
    Default: bastion-host-private-route-table
113
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
114
    ConstraintDescription: >-
115
      Route table name can include numbers, lowercase letters, uppercase
116
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
117
  BastionHostName:
118
    Description: >-
119
      The name of the Bastion Host instance. This name is used as a tag value
120
      for the instance.
121
    Type: String
122
    Default: bastion-host-instance
123
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
124
  BastionHostKeyPair:
125
    Description: >-
126
      The name of an existing EC2 KeyPair to enable SSH access to the Bastion
127
      Host.
128
    Type: AWS::EC2::KeyPair::KeyName
129
  BastionHostType:
130
    Description: >-
131
      The instance type to use for the Bastion Host.
132
    Type: String
133
    AllowedValues:
134
      - t2.nano
135
      - t2.micro
136
      - t2.small
137
      - t2.medium
138
      - t2.large
139
      - t2.xlarge
140
      - t2.2xlarge
141
      - t3.nano
142
      - t3.micro
143
      - t3.small
144
      - t3.medium
145
      - t3.large
146
      - t3.xlarge
147
      - t3.2xlarge
148
      - m1.small
149
      - m1.medium
150
      - m1.large
151
      - m1.xlarge
152
      - m2.xlarge
153
      - m2.2xlarge
154
      - m2.4xlarge
155
      - m3.medium
156
      - m3.large
157
      - m3.xlarge
158
      - m3.2xlarge
159
      - m4.large
160
      - m4.xlarge
161
      - m4.2xlarge
162
      - m4.4xlarge
163
      - m4.10xlarge
164
      - m4.16xlarge
165
      - m5.large
166
      - m5.xlarge
167
      - m5.2xlarge
168
      - m5.4xlarge
169
      - m5.12xlarge
170
      - m5.24xlarge
171
      - m5d.large
172
      - m5d.xlarge
173
      - m5d.2xlarge
174
      - m5d.4xlarge
175
      - m5d.12xlarge
176
      - m5d.24xlarge
177
      - c1.medium
178
      - c1.xlarge
179
      - c3.large
180
      - c3.xlarge
181
      - c3.2xlarge
182
      - c3.4xlarge
183
      - c3.8xlarge
184
      - c4.large
185
      - c4.xlarge
186
      - c4.2xlarge
187
      - c4.4xlarge
188
      - c4.8xlarge
189
      - c5.large
190
      - c5.xlarge
191
      - c5.2xlarge
192
      - c5.4xlarge
193
      - c5.9xlarge
194
    Default: t2.micro
195
    ConstraintDescription: >-
196
      Must be a valid EC2 instance type.
197
  BastionHostAMI:
198
    Description: >-
199
      The ID of the Amazon Machine Image (AMI) that you want to use to launch
200
      the Bastion Host instance.
201
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
202
    Default: /aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2
203
  BastionHostSecurityGroupName:
204
    Description: >-
205
      The name of the security group to assign to the Bastion Host instance.
206
    Type: String
207
    Default: bastion-host-security-group
208
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
209
    ConstraintDescription: >-
210
      Security group name can include numbers, lowercase letters, uppercase
211
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
212
  BastionHostSecurityGroupDescription:
213
    Description: >-
214
      The description of the security group to assign to the Bastion Host
215
      instance.
216
    Type: String
217
    Default: Bastion Host security group
218
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9\s]*[a-zA-Z0-9]$
219
    ConstraintDescription: >-
220
      Security group description can include numbers, lowercase letters,
221
      uppercase letters, and hyphens (-). It cannot start or end with a hyphen
222
      (-).
223
  PrivateInstanceName:
224
    Description: >-
225
      The name of the private instance. This name is used as a tag value for the
226
      instance.
227
    Type: String
228
    Default: bastion-host-private-instance
229
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
230
    ConstraintDescription: >-
231
      Instance name can include numbers, lowercase letters, uppercase letters,
232
      and hyphens (-). It cannot start or end with a hyphen (-).
233
  PrivateInstanceKeyPair:
234
    Description: >-
235
      The name of the Amazon EC2 key pair that you want to use to connect to the
236
      private instance.
237
    Type: AWS::EC2::KeyPair::KeyName
238
    ConstraintDescription: >-
239
      Must be the name of an existing Amazon EC2 key pair.
240
  PrivateInstanceType:
241
    Description: >-
242
      The instance type to use for the private instance.
243
    Type: String
244
    AllowedValues:
245
      - t2.nano
246
      - t2.micro
247
      - t2.small
248
      - t2.medium
249
      - t2.large
250
      - t2.xlarge
251
      - t2.2xlarge
252
      - t3.nano
253
      - t3.micro
254
      - t3.small
255
      - t3.medium
256
      - t3.large
257
      - t3.xlarge
258
      - t3.2xlarge
259
      - m1.small
260
      - m1.medium
261
      - m1.large
262
      - m1.xlarge
263
      - m2.xlarge
264
      - m2.2xlarge
265
      - m2.4xlarge
266
      - m3.medium
267
      - m3.large
268
      - m3.xlarge
269
      - m3.2xlarge
270
      - m4.large
271
      - m4.xlarge
272
      - m4.2xlarge
273
      - m4.4xlarge
274
      - m4.10xlarge
275
      - m4.16xlarge
276
      - m5.large
277
      - m5.xlarge
278
      - m5.2xlarge
279
      - m5.4xlarge
280
      - m5.12xlarge
281
      - m5.24xlarge
282
      - m5d.large
283
      - m5d.xlarge
284
      - m5d.2xlarge
285
      - m5d.4xlarge
286
      - m5d.12xlarge
287
      - m5d.24xlarge
288
      - c1.medium
289
      - c1.xlarge
290
      - c3.large
291
      - c3.xlarge
292
      - c3.2xlarge
293
      - c3.4xlarge
294
      - c3.8xlarge
295
      - c4.large
296
      - c4.xlarge
297
      - c4.2xlarge
298
      - c4.4xlarge
299
      - c4.8xlarge
300
      - c5.large
301
      - c5.xlarge
302
      - c5.2xlarge
303
      - c5.4xlarge
304
      - c5.9xlarge
305
    Default: t2.micro
306
    ConstraintDescription: >-
307
      Must be a valid EC2 instance type.
308
  PrivateInstanceAMI:
309
    Description: >-
310
      The ID of the Amazon Machine Image (AMI) that you want to use to launch
311
      the private instance.
312
    Type: AWS::SSM::Parameter::Value<AWS::EC2::Image::Id>
313
    Default: /aws/service/ami-amazon-linux-latest/amzn2-ami-hvm-x86_64-gp2
314
  PrivateInstanceSecurityGroupName:
315
    Description: >-
316
      The name of the security group to assign to the private instance.
317
    Type: String
318
    Default: bastion-host-private-instance-security-group
319
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9-]*[a-zA-Z0-9]$
320
    ConstraintDescription: >-
321
      Security group name can include numbers, lowercase letters, uppercase
322
      letters, and hyphens (-). It cannot start or end with a hyphen (-).
323
  PrivateInstanceSecurityGroupDescription:
324
    Description: >-
325
      The description of the security group to assign to the private instance.
326
    Type: String
327
    Default: Bastion Host private instance security group
328
    AllowedPattern: ^[a-zA-Z0-9][a-zA-Z0-9\s]*[a-zA-Z0-9]$
329
    ConstraintDescription: >-
330
      Security group description can include numbers, lowercase letters,
331
      uppercase letters, and hyphens (-). It cannot start or end with a hyphen
332
      (-).
333

334
Metadata:
335
  Author: Mohammad Abu Mattar
336
  Version: 1.0
337
  AWS::CloudFormation::Interface:
338
    ParameterGroups:
339
      - Label:
340
          default: Environment
341
        Parameters:
342
          - EnvironmentName
343
      - Label:
344
          default: Natwork Configuration
345
        Parameters:
346
          - VPCName
347
          - VPCCIDR
348
          - PublicSubnetName
349
          - PublicSubnetCIDR
350
          - PrivateSubnetName
351
          - PrivateSubnetCIDR
352
          - InternetGatewayName
353
          - NATGatewayName
354
          - PublicRouteTableName
355
          - PrivateRouteTableName
356
      - Label:
357
          default: Bastion Host Configuration
358
        Parameters:
359
          - BastionHostName
360
          - BastionHostKeyPair
361
          - BastionHostType
362
          - BastionHostAMI
363
          - BastionHostSecurityGroupName
364
          - BastionHostSecurityGroupDescription
365
      - Label:
366
          default: Private Instance Configuration
367
        Parameters:
368
          - PrivateInstanceName
369
          - PrivateInstanceKeyPair
370
          - PrivateInstanceType
371
          - PrivateInstanceAMI
372
          - PrivateInstanceSecurityGroupName
373
          - PrivateInstanceSecurityGroupDescription
374

375
    ParameterLabels:
376
      EnvironmentName:
377
        default: Environment Name
378
      VPCName:
379
        default: VPC Name
380
      VPCCIDR:
381
        default: VPC CIDR
382
      PublicSubnetName:
383
        default: Public Subnet Name
384
      PublicSubnetCIDR:
385
        default: Public Subnet CIDR
386
      PrivateSubnetName:
387
        default: Private Subnet Name
388
      PrivateSubnetCIDR:
389
        default: Private Subnet CIDR
390
      InternetGatewayName:
391
        default: Internet Gateway Name
392
      NATGatewayName:
393
        default: NAT Gateway Name
394
      PublicRouteTableName:
395
        default: Public Route Table Name
396
      PrivateRouteTableName:
397
        default: Private Route Table Name
398
      BastionHostName:
399
        default: Bastion Host Name
400
      BastionHostKeyPair:
401
        default: Bastion Host Key Pair
402
      BastionHostType:
403
        default: Bastion Host Type
404
      BastionHostAMI:
405
        default: Bastion Host AMI
406
      BastionHostSecurityGroupName:
407
        default: Bastion Host Security Group Name
408
      BastionHostSecurityGroupDescription:
409
        default: Bastion Host Security Group Description
410
      PrivateInstanceName:
411
        default: Private Instance Name
412
      PrivateInstanceKeyPair:
413
        default: Private Instance Key Pair
414
      PrivateInstanceType:
415
        default: Private Instance Type
416
      PrivateInstanceAMI:
417
        default: Private Instance AMI
418
      PrivateInstanceSecurityGroupName:
419
        default: Private Instance Security Group Name
420
      PrivateInstanceSecurityGroupDescription:
421
        default: Private Instance Security Group Description
422

423
Resources:
424
  VPC:
425
    Type: AWS::EC2::VPC
426
    Properties:
427
      CidrBlock: !Ref VPCCIDR
428
      EnableDnsSupport: true
429
      EnableDnsHostnames: true
430
      Tags:
431
        - Key: Name
432
          Value: !Ref VPCName
433

434
  PublicSubnet:
435
    Type: AWS::EC2::Subnet
436
    DependsOn:
437
      - VPC
438
    Properties:
439
      VpcId: !Ref VPC
440
      CidrBlock: !Ref PublicSubnetCIDR
441
      AvailabilityZone: !Select [0, !GetAZs '']
442
      Tags:
443
        - Key: Name
444
          Value: !Ref PublicSubnetName
445
  PriveSubnet:
446
    Type: AWS::EC2::Subnet
447
    DependsOn:
448
      - VPC
449
    Properties:
450
      VpcId: !Ref VPC
451
      CidrBlock: !Ref PrivateSubnetCIDR
452
      AvailabilityZone: !Select [0, !GetAZs '']
453
      Tags:
454
        - Key: Name
455
          Value: !Ref PrivateSubnetName
456

457
  IGW:
458
    Type: AWS::EC2::InternetGateway
459
    DependsOn:
460
      - VPC
461
    Properties:
462
      Tags:
463
        - Key: Name
464
          Value: !Ref InternetGatewayName
465
  IGWAttachment:
466
    Type: AWS::EC2::VPCGatewayAttachment
467
    DependsOn:
468
      - VPC
469
      - IGW
470
    Properties:
471
      VpcId: !Ref VPC
472
      InternetGatewayId: !Ref IGW
473

474
  NATGatewayEIP:
475
    Type: AWS::EC2::EIP
476
    DependsOn:
477
      - VPC
478
    Properties:
479
      Domain: vpc
480
  NATGateway:
481
    Type: AWS::EC2::NatGateway
482
    DependsOn:
483
      - VPC
484
      - PublicSubnet
485
      - NATGatewayEIP
486
    Properties:
487
      AllocationId: !GetAtt NATGatewayEIP.AllocationId
488
      SubnetId: !Ref PublicSubnet
489
      Tags:
490
        - Key: Name
491
          Value: !Ref NATGatewayName
492

493
  PublicRouteTable:
494
    Type: AWS::EC2::RouteTable
495
    DependsOn:
496
      - VPC
497
    Properties:
498
      VpcId: !Ref VPC
499
      Tags:
500
        - Key: Name
501
          Value: !Ref PublicRouteTableName
502
  PrivateRouteTable:
503
    Type: AWS::EC2::RouteTable
504
    DependsOn:
505
      - VPC
506
    Properties:
507
      VpcId: !Ref VPC
508
      Tags:
509
        - Key: Name
510
          Value: !Ref PrivateRouteTableName
511

512
  PublicRoute:
513
    Type: AWS::EC2::Route
514
    DependsOn:
515
      - PublicRouteTable
516
      - IGW
517
    Properties:
518
      RouteTableId: !Ref PublicRouteTable
519
      DestinationCidrBlock: 0.0.0.0/0
520
      GatewayId: !Ref IGW
521
  PrivateRoute:
522
    Type: AWS::EC2::Route
523
    DependsOn:
524
      - PrivateRouteTable
525
      - NATGateway
526
    Properties:
527
      RouteTableId: !Ref PrivateRouteTable
528
      DestinationCidrBlock: 0.0.0.0/0
529
      NatGatewayId: !Ref NATGateway
530

531
  PublicSubnetRouteTableAssociation:
532
    Type: AWS::EC2::SubnetRouteTableAssociation
533
    DependsOn:
534
      - PublicSubnet
535
      - PublicRouteTable
536
    Properties:
537
      SubnetId: !Ref PublicSubnet
538
      RouteTableId: !Ref PublicRouteTable
539
  PrivateSubnetRouteTableAssociation:
540
    Type: AWS::EC2::SubnetRouteTableAssociation
541
    DependsOn:
542
      - PriveSubnet
543
      - PrivateRouteTable
544
    Properties:
545
      SubnetId: !Ref PriveSubnet
546
      RouteTableId: !Ref PrivateRouteTable
547

548
  BastionHostSecurityGroup:
549
    Type: AWS::EC2::SecurityGroup
550
    DependsOn:
551
      - VPC
552
    Properties:
553
      GroupDescription: !Ref BastionHostSecurityGroupDescription
554
      VpcId: !Ref VPC
555
      SecurityGroupIngress:
556
        - IpProtocol: tcp
557
          FromPort: 22
558
          ToPort: 22
559
          CidrIp: 0.0.0.0/0
560
      SecurityGroupEgress:
561
        - IpProtocol: tcp
562
          FromPort: 0
563
          ToPort: 65535
564
          CidrIp: 0.0.0.0/0
565
      Tags:
566
        - Key: Name
567
          Value: !Ref BastionHostSecurityGroupName
568
  PrivateInstanceSecurityGroup:
569
    Type: AWS::EC2::SecurityGroup
570
    DependsOn:
571
      - VPC
572
    Properties:
573
      GroupDescription: !Ref PrivateInstanceSecurityGroupDescription
574
      VpcId: !Ref VPC
575
      SecurityGroupIngress:
576
        - IpProtocol: tcp
577
          FromPort: 22
578
          ToPort: 22
579
          SourceSecurityGroupId: !Ref BastionHostSecurityGroup
580
      SecurityGroupEgress:
581
        - IpProtocol: tcp
582
          FromPort: 0
583
          ToPort: 65535
584
          CidrIp: 0.0.0.0/0
585
      Tags:
586
        - Key: Name
587
          Value: !Ref PrivateInstanceSecurityGroupName
588

589
  BastionHost:
590
    Type: AWS::EC2::Instance
591
    DependsOn:
592
      - PublicSubnet
593
      - BastionHostSecurityGroup
594
    Properties:
595
      ImageId: !Ref BastionHostAMI
596
      InstanceType: !Ref BastionHostType
597
      KeyName: !Ref BastionHostKeyPair
598
      NetworkInterfaces:
599
        - AssociatePublicIpAddress: true
600
          DeviceIndex: 0
601
          GroupSet:
602
            - !Ref BastionHostSecurityGroup
603
          SubnetId: !Ref PublicSubnet
604
      Tags:
605
        - Key: Name
606
          Value: !Ref BastionHostName
607
  PrivateInstance:
608
    Type: AWS::EC2::Instance
609
    DependsOn:
610
      - PriveSubnet
611
      - PrivateInstanceSecurityGroup
612
    Properties:
613
      ImageId: !Ref PrivateInstanceAMI
614
      InstanceType: !Ref PrivateInstanceType
615
      KeyName: !Ref PrivateInstanceKeyPair
616
      NetworkInterfaces:
617
        - AssociatePublicIpAddress: false
618
          DeviceIndex: 0
619
          GroupSet:
620
            - !Ref PrivateInstanceSecurityGroup
621
          SubnetId: !Ref PriveSubnet
622
      Tags:
623
        - Key: Name
624
          Value: !Ref PrivateInstanceName
625

626
Outputs:
627
  BastionHostSSH:
628
    Description: SSH command to connect to the bastion host
629
    Value: !Join
630
      - ''
631
      - - ssh -i ~/.ssh/
632
        - !Ref BastionHostKeyPair
633
        - .pem ec2-user@
634
        - !GetAtt BastionHost.PublicIp
635
  PrivateInstanceSSH:
636
    Description: SSH command to connect to the private instance
637
    Value: !Join
638
      - ''
639
      - - ssh -i ~/.ssh/
640
        - !Ref PrivateInstanceKeyPair
641
        - .pem ec2-user@
642
        - !GetAtt PrivateInstance.PrivateIp

Deploying the stack

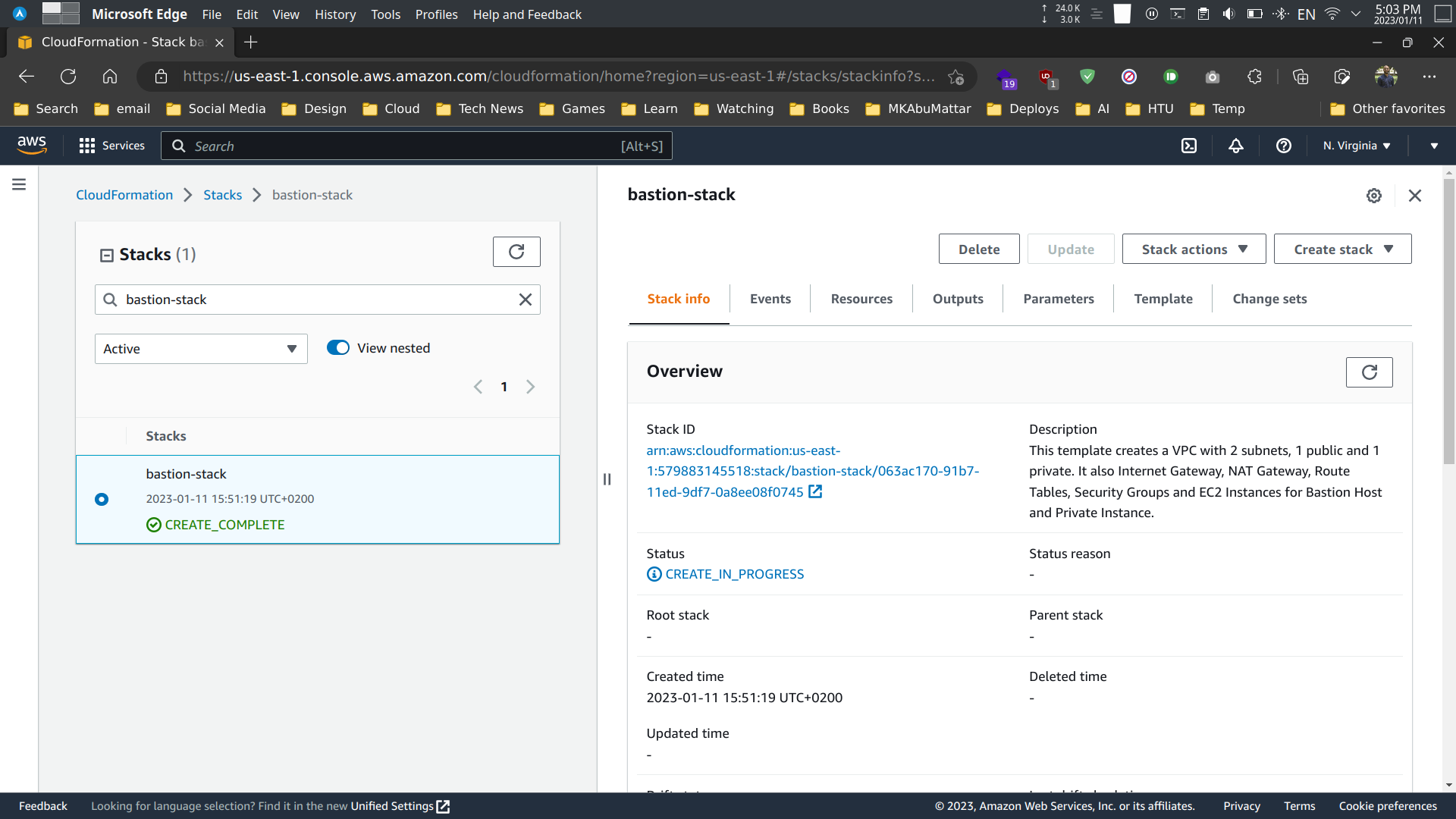

Use the AWS CLI or the AWS CloudFormation console to create a new stack using the bastion-host-with-vpc.yml template file. Provide the necessary parameters such as stack name and region. Make sure that the IAM user has the correct permissions to create the resources specified in the template.

AWS CloudFormation console

Testing the stack

Once the stack is deployed, use the SSH commands provided in the outputs to connect to the bastion host and the private instance. Verify that the instances are running, and that the Internet connectivity is working by running the appropriate commands on the instances.

Step 1: Connect to the bastion host

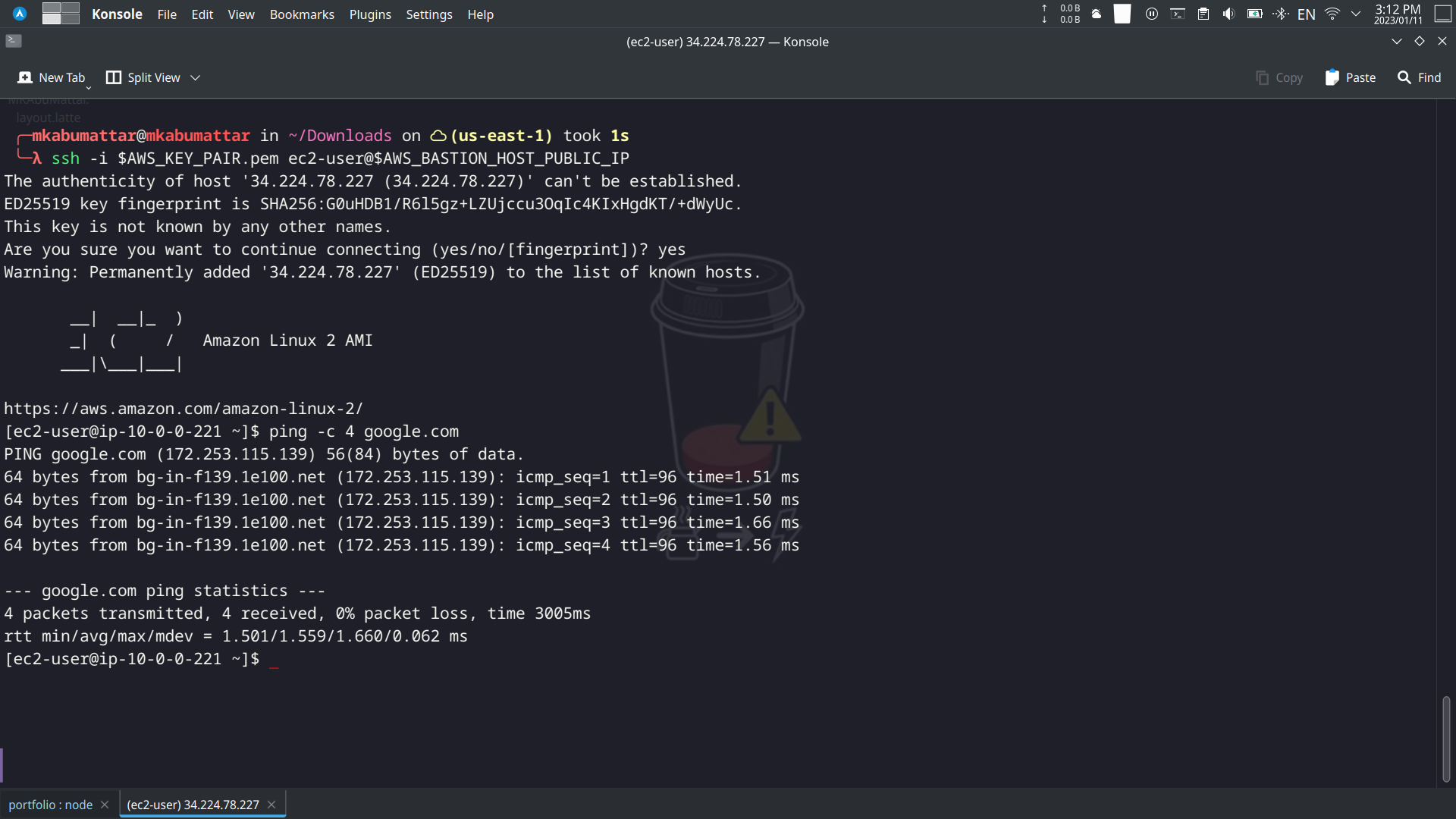

We can use the SSH command provided in the outputs to connect to the bastion host.

ssh -i ~/.ssh/BastionHostKeyPair.pem ec2-user@<BastionHostPublicIp>

Bastion host

Step 2: Connect to the private instance

We can use the SSH command provided in the outputs to connect to the private instance.

ssh -i ~/.ssh/PrivateInstanceKeyPair.pem ec2-user@<PrivateInstancePrivateIp>

Step 3: Test the connection

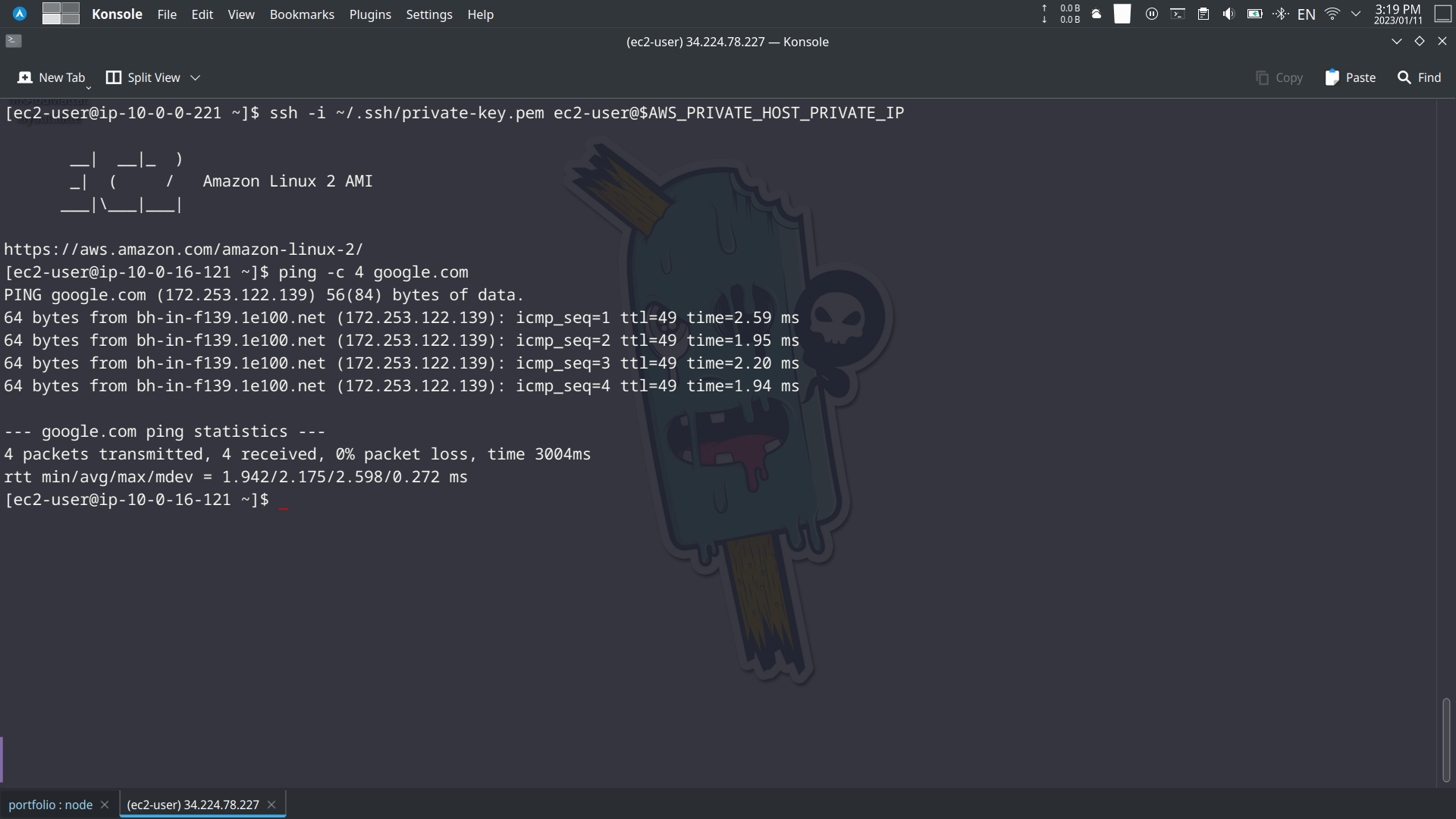

Now that you are connected to the private host, you can check if the host has internet connectivity by pinging a public IP or URL:

ping -c 4 google.com

The above command will send 4 ICMP echo requests to the IP address of Google’s website, and the private host will respond with 4 ICMP echo replies if it can reach the internet. This verifies that the NAT gateway and route tables are configured correctly.

Alternatively, you can also check internet connectivity by using curl command to download a webpage:

Internet Connectivity

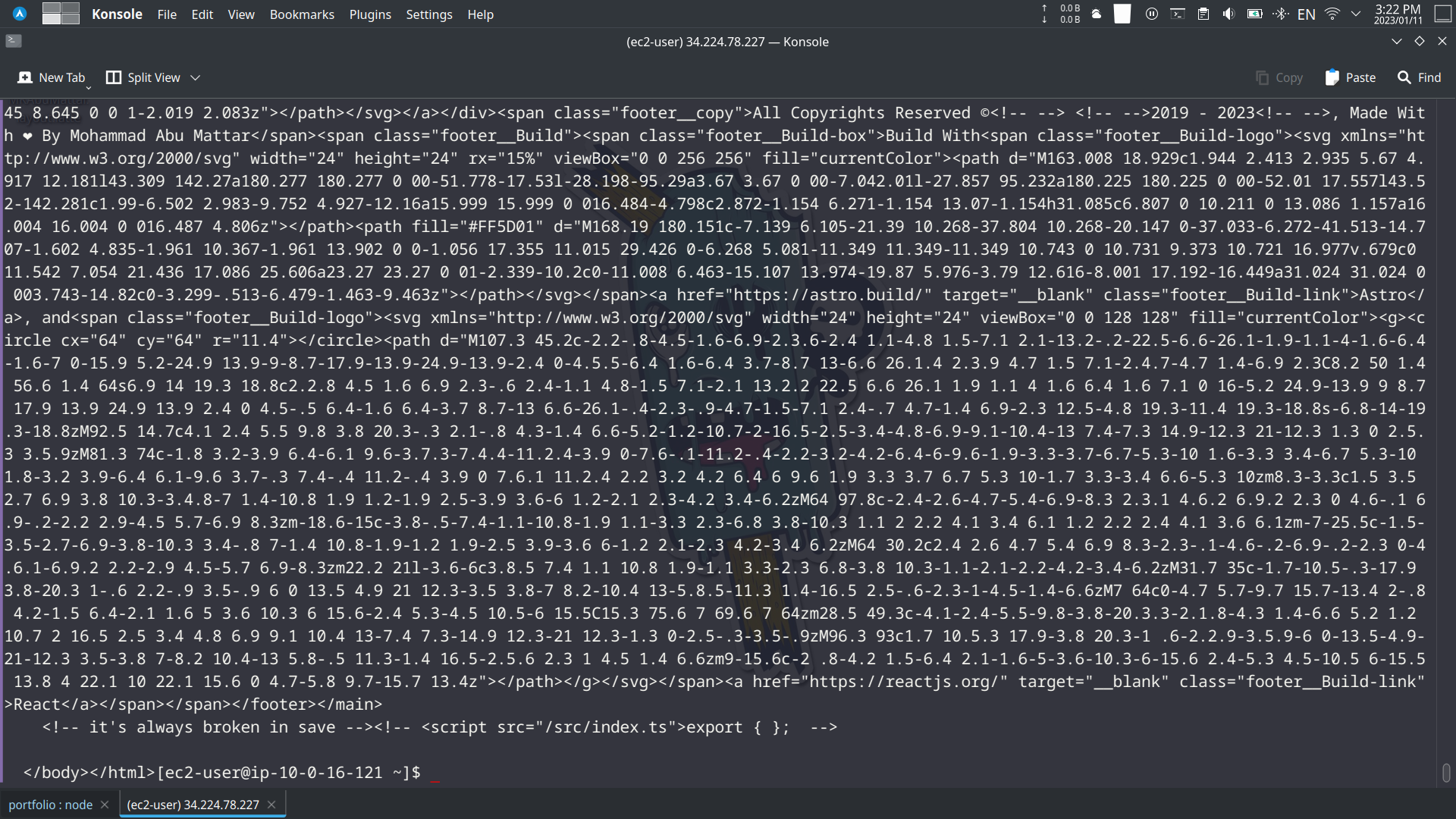

curl -s https://www.mkabumattar.tech

This will download the website’s source code and will return it to the terminal, and check if the response is received from the website. If the private host has internet connectivity, it will show the webpage’s source code.

It is important to note that, if you are running these commands from the bastion host, you might not face the same restrictions as the private host, in that case you should run the commands from the private host, or you could use a specific website for the test that is blocked for your private network

Internet Connectivity

Cleanup

When you are done testing and using the stack, it is a good practice to clean up and delete the stack using the AWS CLI, AWS Console, or the AWS CloudFormation console to avoid unnecessary charges.

Conclusion

In this tutorial, we’ve learned how to set up a Bastion Host on AWS using CloudFormation Templates. We’ve gone through the process of creating a CloudFormation Template, deploying the stack, testing the connection, and deleting the stack. By using CloudFormation Templates, we can easily provision and manage our infrastructure in an automated and repeatable way. It’s an efficient method to set up and scale infrastructure. However, it’s important to make sure to clean up the resources when no longer in use to avoid incurring unnecessary costs.

References

These references should provide you with more in-depth information on the various services and concepts used in this tutorial, such as VPC, EC2, IAM, and the AWS CLI. Additionally, it includes more information about bastion host. It would be very helpful if you go through those references to gain more knowledge and information in order to improve the setup even more.
